| Port Size: | DN40---DN3200 | Standard or Nonstandard: | Standard |
|---|---|---|---|
| Structure: | Butterfly | Pressure: | Medium Pressure |
| Power: | Manual | Material: | Casting |
| Temperature of Media: | Medium Temperature | Media: | Water |
| Seat: | Stellite | Connection type: | Flange type |
| Warranty: | 18 months | Temperature: | -29℃--425℃ |
| Actuator: | worm gear |

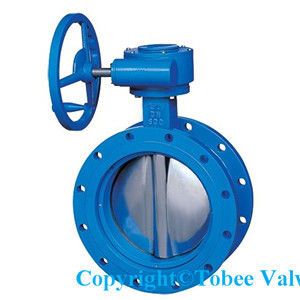

Specification For Tobee stainless steel butterfy valve
The Butterfly Valve Standard
Designed: API609/ ASME B 16.34/ AWWA C 504/ BS EN593
Faceto Face: API 609/ AWWAC504/ BS2080/ ISO5752
Flange End: ASME B 16.5/ ASME B 16.47/ BS EN1092/ ISO7005
Inspection Test: API 598/ BS EN 12266/ ISO 528
Materials Choose
Body: WCB/WCC/LCB/QT450-10/QT500-7/CF8/CF3/CF8M/CF3M/WC6/WC9
Disc: WCB/WCC/LCB/QT450-10/QT500-7/CF8/CF3/CF8M/CF3M/WC6/WC9
Seat: 304/316/Graphite/Asbetos/PTFE/EPDM/NBR/Reinforece PTFE
Specifications
Pressure: PN10/PN16/PN25/PN40/CL150/CL300
Size: DN40---DN3200
Drive Mode: Manual/Worm gear/Electric/Pneumatic/ Hydraulic
Field of Application: petroleum, chemical industry, metallurgy, building materials, military industry and water-supply and drainage, heating, gas supply and other industries etc.
Butterfly Valve with Triple Eccentric Design:
Butterfly Valve Product Showing:
The butturfly valve factory:
