| Port Size: | DN40-600 | PN: | 0.6Mpa 1.0Mpa 1.6Mpa |
|---|---|---|---|
| valve body test: | 0.9Mpa 1.5Mpa 2.4Mpa | seal test: | 0.66Mpa 1.1Mpa 1.76Mpa |
| Power: | Manual | Temperature of Media: | Normal Temperature |
| Media: | water, oil and chemical media | Application: | General |

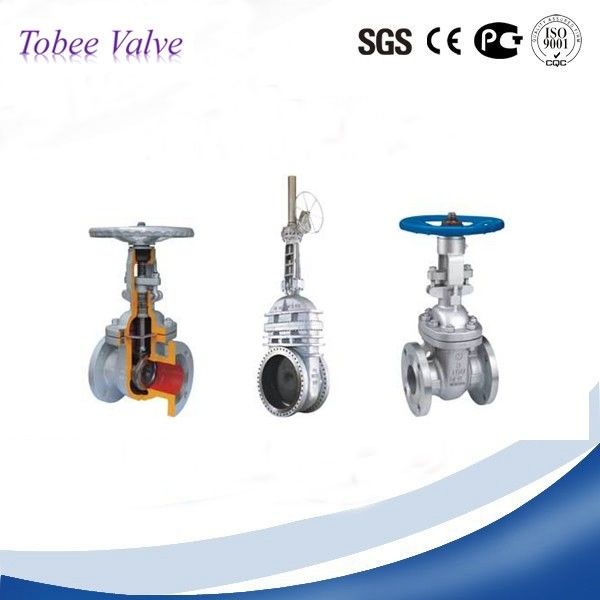

1.Specification For Ductile iron /cast iron metal seated gate valve
| Main parts and materials | |||||
| Parts name | Material | ||||
| Valve body,Bonnet | Grey iron Ductile iron | ||||
| Disc | Grey iron Ductile iron | ||||
| Stem | Carton steel, Brass, Stainless steel | ||||
| Yoke nut | Brass ,Ductile iron | ||||
| Function and specification | |||||
| Type | PN(Mpa) | Testing pressure(Mpa) | Suitable temperature | Suitable medium | |
| Strength | Enclose | ||||
| Z941H-10 | 1.0 | 1.5 | 1.1 | ≤200°C | Water,Vapour,Oil |
| Z941T-10 | Water,Vapour | ||||
| Z941W-10 | ≤100°C | Oil | |||
2.Catalogue of gate Valve:
3.Factory:
4.Packing for Gate Valve:
